The pool controls the physical connection to the target Enterprise Information System, such as a database.
It is up to the pool to create, hand out and destroy connections in the defined lifecycle based on the configuration parameters supplied by the user.

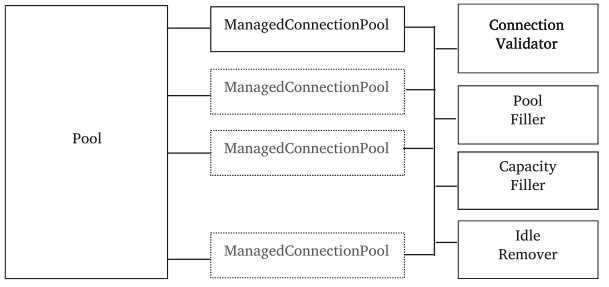

The pool architecture
Note
Each of the components in the pool architecture can be accessed by multiple threads at the same time, hence each component needs to make sure that thread safely is maintained.The public API defines the API that programs external to the IronJacamar project can use to configure, and use the pool.
The Pool interface allows access to the name of the pool, flushing connections,
verifying if a connection can be obtained from the pool and dump any queued threads.
The PoolConfiguration class holds the configuration parameters for the pool.
The FlushMode enum defines the different flush modes supported.
The PoolStatistics interface defines the statistics available for a pool.
The package for the public API is org.jboss.jca.core.api.connectionmanager.pool.
The private API defines the API that can be used internally IronJacamar to control the pool. The API extends the public API where it makes sense in order to provide a more uniform interface to the implementation.
The PoolFactory class will create a Pool based upon the passed in
configuration.
The PoolStrategy enum defines how the pool is split based on credential equallity.
The Pool interface extends the public API with methods that should only be available
from with IronJacamar such as getting a connection listener, returning a connection listener, and
shutting down the pool.
The PrefillPool interface defines the contract for pool implementations that supports
prefilling of connections upon startup, such as OnePool and PoolBySubject.
The Capacity interface provides a handle to the policies used for increasing and decreasing
the pool.
The CapacityIncrementer interface defines if a physical connection should be created
given the input parameters.
The CapacityDecrementer interface defines if a physical connection should be destroyed
given the input parameters.
The package for the private API is org.jboss.jca.core.connectionmanager.pool.api.
The pool implementation provides a concrete implementation of the contracts defined by the public and private APIs.
The package for the pool implementation is org.jboss.jca.core.connectionmanager.pool.
AbstractPool provides the methods that are shared across all pool implementations.
getKey(Subject, ConnectionRequestInfo, boolean) defines the key used to lookup the
ManagedConnectionPool instance. The implementation of this method is different for each
pool type.
getManagedConnectionPool(Object, Subject, ConnectionRequestInfo) retrieves the correct
ManagedConnectionPool instance. If the ManagedConnectionPool doesn't yet
exists then one is created, and initialized.
emptyManagedConnectionPool(ManagedConnectionPool) removes a
ManagedConnectionPool instance, if unused.
flush flushes the ManagedConnectionPool instances, based on the
FlushMode.
getConnection(Transaction, Subject, ConnectionRequestInfo) returns a ConnectionListener instance,
which has the physical connection to the Enterprise Information System attached. The method uses 3 sub methods to return the
correct listener instance. getSimpleConnection returns a ConnectionListener if there is no
transaction associated. getTransactionOldConnection returns the ConnectionListener already associated
with the transaction, if any. getTransactionNewConnection creates a new ConnectionListener, and associates
it with the transaction.
findConnectionListener finds a specific ConnectionListener instance.
returnConnectionListener returns a ConnectionListener instance to the correct
ManagedConnectionPool.
shutdown shuts down the pool. This is done using
synchronization such that any components having a reference will be notified through an error.
internalTestConnection(ConnectionRequestInfo, Subject) tries to obtain a ConnectionListener
based on the input given.
getLock() returns the lock that guards the maximum number of active ConnectionListener's in
the pool. This method is used by the ManagedConnectionPool instances when modifying their data structure
that holds the ConnectionListener's.
dumpQueuedThreads() returns a stack trace of each of the queued threads waiting to obtain a ConnectionListener instance.
The AbstractPrefillPool enables the pool to prefill connections during startup, and through its lifecycle.
prefill(Subject, ConnectionRequestInfo, boolean) handles the prefilling process.
IronJacamar features 5 different pool types. Each pool type has its own getKey method implementation that
defines how a ManagedConnectionPool instance is located.
OnePool uses one ManagedConnectionPool instance to hold all ConnectionListeners.
PoolByCri splits the ManagedConnectionPool instances based on the ConnectionRequestInfo
instance.
PoolBySubject splits the ManagedConnectionPool instances based on the Subject
instance.
PoolBySubjectAndCri splits the ManagedConnectionPool instances based on both the
ConnectionRequestInfo instance and the Subject instance.
ReauthPool allows the ConnectionListener instances to reauthenticate, so the
ManagedConnectionPool instances can change over time based on the ConnectionRequestInfo
and Subject instances.
The package for the pool types is org.jboss.jca.core.connectionmanager.pool.strategy.
The ManagedConnectionPool controls the ConnectionListener instances, which each has
a physical connection (ManagedConnection) associated.
The package is org.jboss.jca.core.connectionmanager.pool.mcp
ManagedConnectionPool instances should only be accessed from within IronJacamar, so they only have
a private API.
The ManagedConnectionPoolFactory class creates a ManagedConnectionPool instance.
The ManagedConnectionPool interface defines the methods exposed to the pool, connection validator, and
idle remover. These methods includes getting a connection listener, finding a connection listener, and returning a
connection listener.
The ManagedConnectionPoolStatistics interface defines the statistics for the ManagedConnectionPool
instance.
The ManagedConnectionPoolUtility class defines utility methods for the ManagedConnectionPool
instance.
There are three different implementations of the ManagedConnectionPool interface. SemaphoreArrayListManagedConnectionPool
which uses an ArrayList to hold the ConnectionListeners.
SemaphoreConcurrentLinkedQueueManagedConnectionPool which uses a ConcurrentLinkedQueue
to hold the ConnectionListeners. SemaphoreConcurrentLinkedQueueManagedConnectionPool also uses a ConcurrentHashMap
to keep track of the internal status of each of the ConnectionListeners.
Last, a LeakDumperManagedConnectionPool which extends SemaphoreArrayListManagedConnectionPool, but reports any leaks upon
shutdown.
getConnection(Subject, ConnectionRequestInfo) provides a ConnectionListener. The method requires a lock in order to
obtain a listener, using the specified timeout value. If a listener is avaiable in the pool then it is matched against the ManagedConnectionFactory
to verify it is valid, and returned - otherwise it is destroyed. If no listener is available then a new listener is created and returned. In the latter case
both prefill and a capacity increase is scheduled in order to prefill to the minimum size, and increase the pool by the specified capacity policy.
returnConnection(ConnectionListener, boolean, boolean) returns a ConnectionListener into the pool.
flush(FlushMode) flushes the ConnectionListeners according to the mode. Any listeners marked as bad will be destroyed.
Prefill is scheduled at the end in order to maintain the minimum pool size.
removeIdleConnections is invoked from the idle remover in order to decrement the pool to the desired size based on the CapacityDecrementer
policy. If any listeners are destroyed the pool is either scheduled for prefill, or for removal through emptyManagedConnectionPool if empty.
shutdown shuts the instance down. All listeners are removed. This is done using
synchronization such that any components having a reference will be notified through an error.
fillTo(int) fills the pool to the specified size. The pool filler component uses this method.
increaseCapacity(Subject, ConnectionRequestInfo) increases the pool based on the CapacityIncrementer policy. The capacity filler component
uses this method.
validateConnections validates that the listeners are valid according to ValidatingManagedConnectionFactory. Any invalid listeners are destroyed
and prefill scheduled. The connection validator component uses this method.
detachConnectionListener disassociates the connections attached to the ManagedConnection such that it can be reused in another request through
DissociatableManagedConnection.
Important
TheConnectionListener implements java.lang.Comparable, so ConnectionListener.used() must
be called before returning it to the data structure controlling the free connections. There may be a time interval between the call
and the actual return.
